●1/4” Super HAD Color CCD
●10倍光学自动/手动,变焦镜头（f=3.8~38mm)
●0.7Lux/F1.8（color)
●0.1Lux(B/W),0.005Lux(sens-up)
●彩色500TVL
●黑白570TVL
●彩色转黑白（ICR)
●SSNR三星降噪芯片，运动监测功能
●OSD菜单内置
●超小尺寸
|

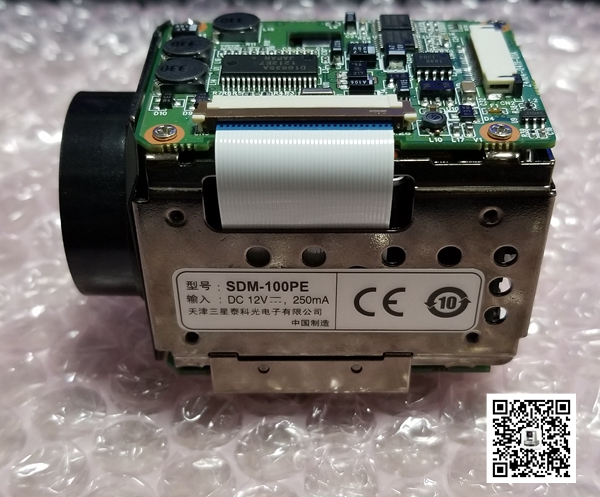

型号
|
SDM-100PE
|
|
电源
|
DC8V～15V(推荐：9V或12V)
|
| 功率 |
静态3.08W 运动5.1W
|
|
CCD
|
大小
|
1/4inch，double density interline transfer CCD
|
|
总像素
|
795(H)×596(V)
|
|
有效像素
|
752(H)×582(V)
|
|
光学
|
光学变焦
|
10X,f=3.8 to 38.8mm（F 1.8to3.2）
|
|
最小焦点距离
|
1500mm
|
|
数码变焦
|
10X
|
|
观测最大范围
|
水平55.5°近焦)to1.59°（远焦）垂直42.5°（近焦）to1.19°（远焦）
|
|
同步
|
扫描系统
|
2：1隔行扫描
|
|
同步
|
内同步/外同步
|
|
频率
|
水平：15.625 KHZ/垂直:50.00HZ
|
|
功能
|
分辨率
|
500TVL彩色,570TVL黑白
|
|
最低照度
|
0.7Lux/F1.6:彩色/0.02 Lux/F1.6黑白
|
|
信噪比
|
50dB
|
|
视频输出
|
CVBS:1.0Vp-p/75欧
|
|
聚焦
|
自动/手动/一次性聚焦
|
|
变焦速度
|
2.5秒
|
|
摄像机id
|
255ID
|
|
日夜转换
|
AUTO/COLOR/BWIR-CUT
|
|
增益
|
LOW/MEDIUM/HIGH/MANUAL/OFF
|
|
白平衡
|
ATW/AWC/MANUAL/INDOOR/OUTDOOR(1.800K～10.500K)
|
|
背光补偿
|
WDR/USER/HLC/OFF
|
|
电子快门
|
自动/手动/防闪烁
|
| O.S.D菜单 |
内置
|
|
动态侦测
|
开/关(向外输出报警信号)
|
|
外部控制
|
RS-232C TTL Level（2400.4800.9600.19200.38400.57600.115200bps）
|
|
SSNR三星降噪
|
低/中/高/关闭
|
|
隐私遮挡
|
ON/OFF(8 Areas)
|
|
图像翻转
|
左右/上下
|
|
工作环境
|
-10℃ to+50℃/20﹪ to 80﹪ RH
|
|
储藏环境
|
-20℃to+60℃/20﹪to96﹪RH
|
|
尺寸
|
48.6(W) ×53.8(H) ×93.7(D)mm
|
|
重量
|
96g
|
* 10*10X, Color to B/W
* 1/4" Interline Transfer CCD
* 44 million pixels
* 500 line/0.7Lux(color)
* 570 line/0.02Lux(B/W)
* Samsung SSNR noise reduction chip
* exercise monitoring function
* 10X optical zoom/10X digital
* f=3.8-38mm
Specification:
| Model |
SDM-100PE |
| Power supply |
DC 9V to 12V (Recommend: 9V or 12V ) |
| Power |
Static：3.15W Sports ：4.5W |
| DSP |
W3 |
| CCD |
Size |
1/4 inch, Interline Transfer CCD |
| Total Pixels |
795(H) x 596(V) |
| Effective Pixels |
752(H) x 582(V) |
| Optical |
Optical zoom |
10X, f=3.8 to 38mm(F 1.8 to 3.2) |
| The minimum focus distance |
1000mm |
| Digital Zoom |
Continuous 10x |
| Maximum range observed |
Level: 51.2°(nearly) to 5.58°(far)
vertical : 39.3°(nearly) to 4.27°(far) |
| Synchronization |
Scanning system |
2:1 interlaced |
| Synchronization |
Internal Synchronization /Outside synchronization |
| frequency |
Level: 15.625 KHz / Vertical : 50.00 Hz |
| Function |
Camera ID |
255 ID |
| Resolution |
Color ：500 TVL Black-and-white：570 TVL |
| video output |
CVBS : 1.0Vp-p/75Ω |
| SNR （S/N） |
50 dB (AGC Off,Weight ON) |
| minimum illumination |
Color : 0.7 Lux/F1.8 (50 IRE)
Black-and-white : 0.02Lux/F1.8 (50 IRE) |
| BLC |
High/ medium / low / OFF |
| ICR |
Color to Black-and-white (ICR ) |
| AGC |
Low / high / OFF |
| WB |
ATW ( Indoor(3,000˚K~6,500˚K), Outdoor (1,800˚K~10,500˚K))/AWB /Manual |
| Electronic Shutter |
Auto /Manual (X512 ~1/50sec ~ 1/120,000sec) |
| Film speed |
X128 |
| O.S.D |
Chinese or English |
| Motion Detection |
On/Off (Outward output alarm signal) |
| External control |
RS-485 or RS-232C CMOS Level
(2400, 4800, 9600, 19200, 38400, and 57600bps Selectable) |
| SSNR |
Low/medium/high is optional |
| Focus |
Automatic/manual/one-time automatic focusing |
| ZOOM SPEED |
1.75S ：Nearly burnt to telephoto |
| Camera initialization |
Built in |
| User the default |
8 group |
| Privacy shelter |
Total 32 area：8group，Each group with display four editable area) |
| Rollover |
right and left /Up and down |
| Freeze |
On/Off |
| Iris control |
Manual/automatic |
| Size |
38.9(W)×43.7(H)×61.67(D)mm |
| working environment |
-10℃ to +50℃ / 20% to 80% RH |
| Stored Environment |
-20℃ to +60℃ / 20% to 95% RH |
| Weight |
96g |
